How to integrate

---

1. Prepare Payment Token Request

To prepare a payment token request, refer to the required parameters below.

Payment Token Request

{
  "client_id": "shop1",
  "client_secret": "myshopsecret",
  "channel": "QRCODE",
  "amount": 100,
  "currency": "THB",
  "invoice_no": "INV0001",
  "ref1": "ref1",
  "ref2": "reg2",
  "remark": "reamrk",
  "frontend_redirect_url": "https://yourdomain.com/payment-success",
  "backend_callback_url": "https://yourdomain.com/api/payment-callback",
  "locale": "th"
}

Parameter	Data Type	Mandatory	Description
client_id	string	Yes	Client ID
client_secret	string	Yes	Client Secret
channel	string	Yes	Payment Channel
amount	float	Yes	Payment Amount
currency	string	Yes	Payment Currency
invoice_no	string	Yes	Invoice Number
ref1	string	Yes	Reference 1
ref2	string	No	Reference 2
remark	string	No	Payment Remark
frontend_redirect_url	string	No	Frontend Redirect URL
backend_callback_url	string	No	Backend Callback URL
locale	string	No	[th, en] default is th

2. Receive Payment Token Response

To receive a payment token response, refer to the sample payment token response below.

Payment Token Response

{
  "status": "success",
  "access_token": "your-payment-token",
  "expired_at": "2023-04-30T12:34:56Z",
  "expires_in": 3600,
  "web_redirect_url": "https://yourdomain.com/payment-success?token=your-payment-token"
}

Parameter	Data Type	Mandatory	Description
status	string	Yes	Payment Status
access_token	string	Yes	Payment Token
expired_at	string	Yes	Expired At
expires_in	number	Yes	Expires In
web_redirect_url	string	Yes	Web Redirect URL

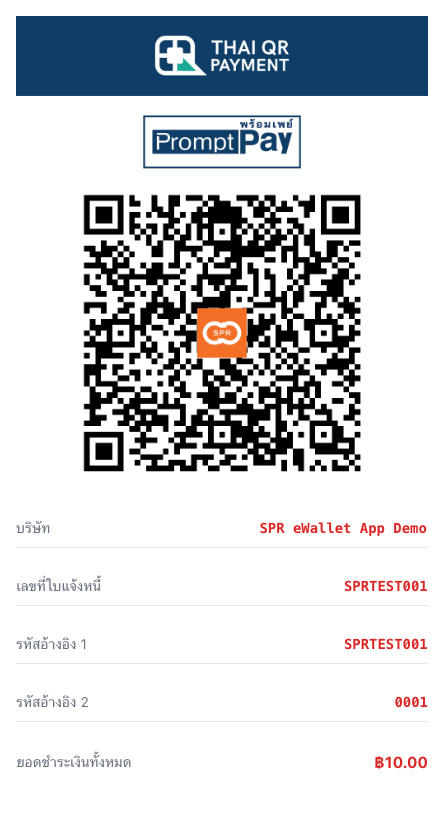

3. Redirect to Payment Page

Redirect to payment page via browser. The payment page URL is returned in the Parameter "web_redirect_url".

4. Receive Payment Response via backend API

The parameter "backend_callback_url" that was previously sent via Payment Token Request is the merchant endpoint that will receive the backend notification. If the parameter "backend_callback_url" is not set, the system will obtain the backend return URL from the merchant profile set in Superrich QR Pay's merchant portal by default.

Back End Payment Response

{
  "id": 1,
  "company_id": 1,
  "client_id": 1,
  "channel": "QRCODE",
  "amount": 100,
  "currency": "THB",
  "invoice_no": "INV0001",
  "reference1": "ref1",
  "reference2": "reg2",
  "remark": "reamrk",
  "trx_id": "1233123",
  "canceled_at": "2023-04-30T12:34:56Z",
  "canceled_reason": "canceled_reason",
  "status": "COMPLETED",
  "created_at": "2023-04-30T12:34:56Z",
  "expired_at": "2023-04-30T12:34:56Z",
  "completed_at": "2023-04-30T12:34:56Z"
}

Parameter	Data Type	Mandatory	Description
id	number	Yes	Payment ID
company_id	number	Yes	Company ID
client_id	number	Yes	Client ID
channel	string	Yes	Payment Channel
amount	number	Yes	Payment Amount
currency	string	Yes	Payment Currency
invoice_no	string	Yes	Invoice Number
reference1	string	Yes	Reference 1
reference2	string	Yes	Reference 2
remark	string	Yes	Payment Remark
trx_id	string	Yes	Transaction ID
canceled_at	string	Yes	Canceled At
canceled_reason	string	Yes	Canceled Reason
status	string	Yes	Payment Status
created_at	string	Yes	Created At
expired_at	string	Yes	Expired At
completed_at	string	Yes	Completed At

5. Receive Payment Response via browser redirection

Fill in the parameter "frontend_redirect_url" with the merchant page that you wish to redirect to. If the parameter "frontend_redirect_url" is not set, the system will obtain the front end return url from the merchant profile set in Superrich QR Pay's merchant portal by default. Refer to the sample response returned below.

Front End Payment Response

{
  "status": "COMPLETED",
  "payment_token": "your-payment-token",
  "invoice_no": "INV0001"
}

Parameter	Data Type	Mandatory	Description
status	string	Yes	Payment Status
payment_token	string	Yes	Payment Token
invoice_no	string	Yes	Invoice Number
